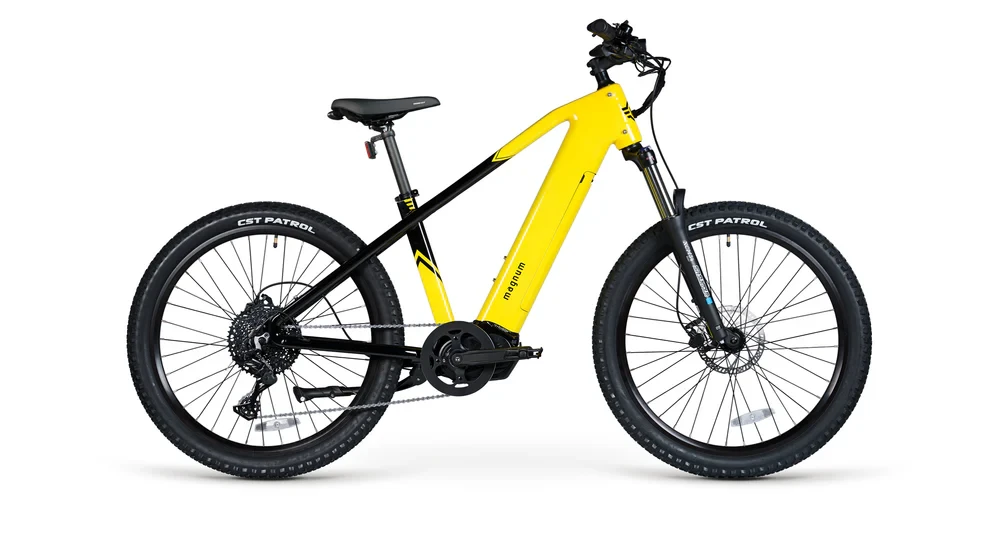

The Magnum Vertex
Our first mid-drive mountain bike is here, and it’s packed with new components and features combining everyday comfort with intuitive and balanced mid-drive technology. Whether you’re a trail crusher, dirt road rider, or prefer the comfort and style of a mountain bike on the street, the Vertex is sure to please.
Highlights
Category
Mountain
Class
Can be configured to a Class 1, 2, or 3 E-Bike.
Frame Type
High-step, MTB Cross-Country
Seating
Active
Perfect For
Gravel / Trails / Off-road
THE BATTERY.
The Vertex’s integrated and color-matched battery has a 15Ah capacity, and the ability to take a rider up to 50 miles on a single charge.
15Ah
50 miles (80 Kilometers) Max Range
7.5 Hours Charge Time
POWER MEETS BALANCE
Throttle-controlled mid-drive motor
Equipped with a powerful 500W mid-drive motor, this e-bike has natural power delivery, increased water resistance, and unique throttle control. It also features a derailleur clutch for rough terrain and a quick-detach rear wheel for easy maintenance.
Component Overview
Electronic Details
Motor Brand
Ananda
Motor Type
Mid-Drive Motor
Motor Nominal Output
500 Watts
Motor Peak Output
750 Watts
Battery Voltage
48 Volts
Battery Ah
15Ah
Battery Wh
720Wh
Battery Chemistry
Li-NMC, UL2271 & UL2849 Certified
Battery Charge Time (from empty)
7.5 Hours
Minimum Range
25 Miles (40 Kilometers)
Maximum Range
50 miles (80 Kilometers)
Display Type
Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
Display Readouts
Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Drive Mode
Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode
Top Speed
Up to 27 mph with Pedal Assist, 20 mph with Throttle
Lights
Integrated front light, saddle mounted rear light.
